Detailed Product Description
Product Description

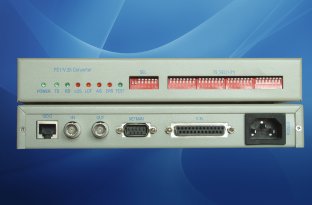

FE1/V.35 Protocol Converter provide conversion between ITU-T G.703 standard E1 interface and standard V.35/V.24 interface, can convert E1 channel of SDH, PDH, and other Optical Transmission Equipment or microwave, satellite Equipment to V.35/V.24 channel, Extend V.35 channel of DDN. Used widely in data communication networks, Connecting with V.35/V.24 interface of Routers and Optical Transmission Equipments without G.703 interface, realize match between different network equipments, and transparent to upper protocol layer.
Technology Characteristics
-> Bandwidth range is 64Kbps-2048Kbps Realize data of V.35 transparent transport over E1
-> Support all kinds of loop function, for testing and opening conveniently
-> Support network function, monitor operation condition of facilities
-> Support E1 interface of unbalance 75Ω and balance 120Ω
-> Be possession of testing function of E1
Interface Parameters
E1 Interface:
-> Support ITU-T G.703、G.704
-> HDB3 line coding, comply indication output of route warn
-> Coding rate : 2048Kbps±50ppm
-> 75Ω physics interface use BNC standard coaxial connector, 120Ω physics interface use RJ45 connector
V.35 Interface:
-> Interface Mode : DCE
-> Interface Type : DB25
-> Rate : 64Kbps-2048Kbps
Typical application
General characteristics
-> Power : 220V±20% , -36 ~ -72V
-> Power Consumption : < 5W
-> Environment Temperature : 0?50?br />
-> Size : 220×165×35mm
-> Net Weight : 900g
Packing List
-> FE1/V.35 Protocol Converter
-> One Power cord (Note : -48v no with power cord)
-> Two BNCs Coaxial Connector
-> One conversion cable of DB25-M34
-> Manual book
