8E1 over IP converter

Overview

IDM-TOP800 E1/T1 over IP converter can transmit 1~16 E1 channels over the IP networks. The device supports framed and unframed E1 channel, and support all of the traditional E1 and IP services, such as voice, data, fax, signaling and the other all kinds of communication service. IDM-TOP800 E1/T1 over IP converter is widely used with WLAN to transmit E1 signals.

Features

1. Transmitting framed and unframed E1 signal through IP network
2. E1 Number: 1 to 16 channels optional
3. FE Number: 3. (1 of them is electrical, the rest 2 could either be electrical or optical)
4. Low throughput delay
5. Clock Selectable: internal clock, external clock, network adaptable clock or recovered from E1 line
6. Can be configured for N X 64K, or  network adaptable to N X 64K
7. QoS guarantee for E1 transmitted on the IP network
8. Easy to configure and use.
9. Transmitted package based on the IP address, through switches, routers network equipment etc
10. General UTP Ethernet interface, 10M/100M auto-negotiation

Specifications

Power:

Power consumption:≤4W

AC power: 160-240v

DC power: -48V

Ethernet

Physical port: RJ-45/FC/SC

Port rate: 10/100Mbps

Full/half duplex

Compatible with IEEE802.3

E1

Physical port: RJ45

Input rate range: 2.048Mbps±50ppm

Port code: HDB3

Impedance: 120ohm balanced

Compatible with: G.703

Environment

Operating Temperature: 0~50ºC

Operating Relative Humidity: 0~95%

Store Temperature: -20~65ºC

Store Relative Humidity: 10~95%  Size  482mm(W)×430mm(H)×152mm(D)

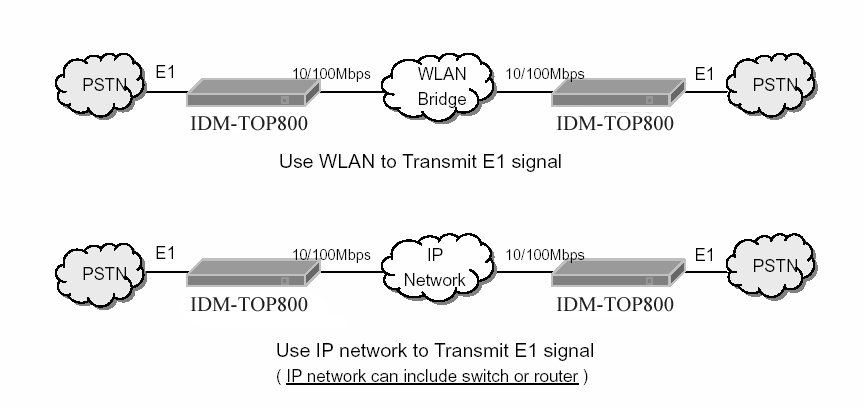

Application

Ordering information

IDM-TOP801 1E1 over IP/Ethernet

IDM-TOP802 2E1 over IP/Ethernet

IDM-TOP804 4E1 over IP/Ethernet

IDM-TOP808 8E1 over IP/Ethernet

IDM-TOP816 16E1 over IP/Ethernet
