Detailed Product Description
Brief

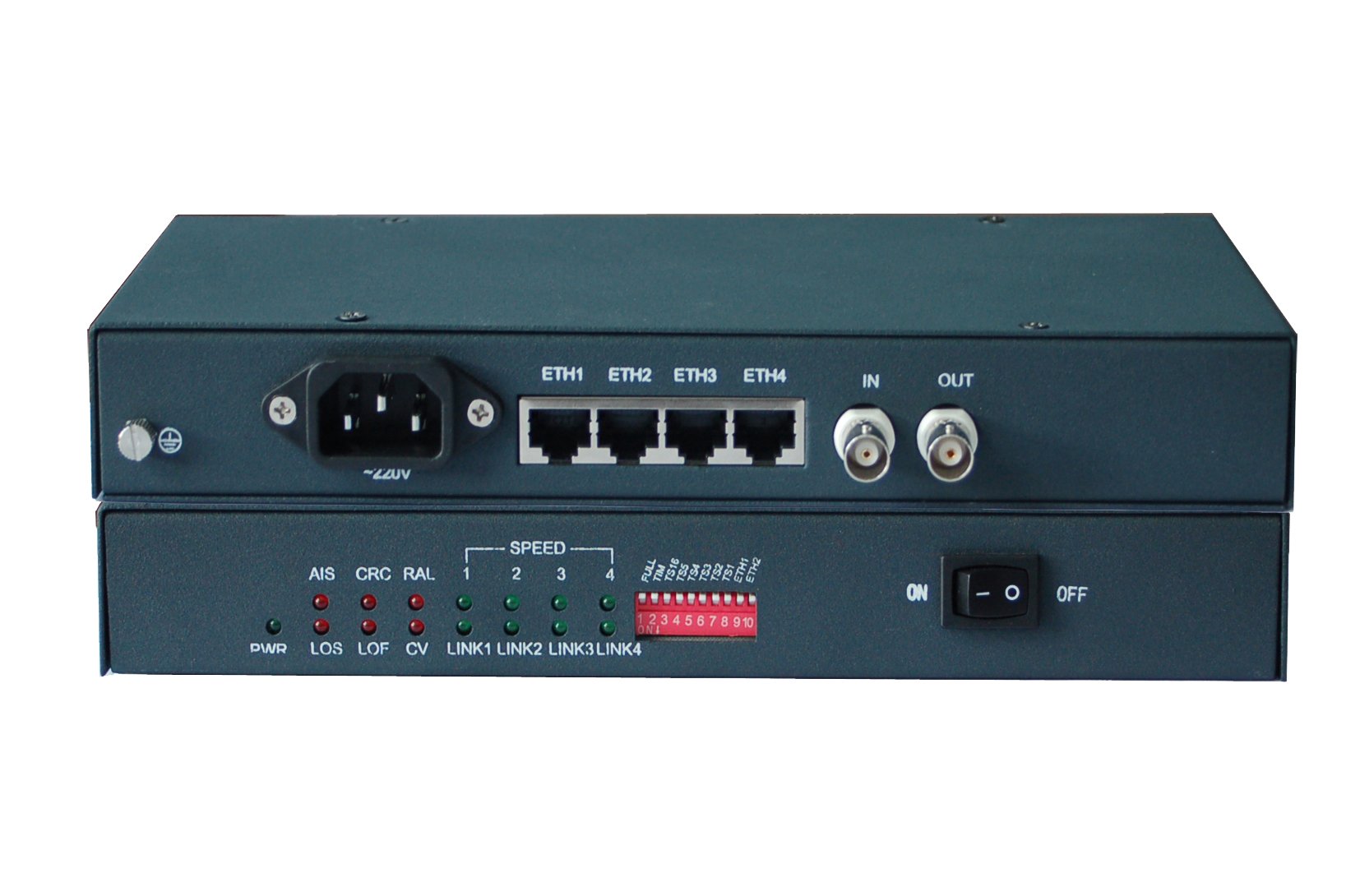

The IDM-FE1/4ETH converter complies with YD/T922-1997 and YD/T1096-2001 standard and it manages to make the conversion between 10/100M Ethernet signals and E1 signals.
Features
-
In compliance with IEEE802.3-1998 standard
-
In compliance with G.703 standard.
-
Unbalanced 75ΩE1 interface and balanced 120ΩE1 interface optional
-
Four Ethernet interfaces
-
Ethernet rate is 10/100Mbps, full/half duplex mode optional
-
Internal clock mode and line clock mode available
-
Framed and unframed E1 signal optional
-
Local loopback supported
-
DIP switch in charge of working modes management such as Framed/unframed modes, clock modes, time slots selection under framed mode and Ethernet mode.
-
CO equipments manage and configure the RO equipment by SNMP
Specifications
Ethernet interfaces
-
Standard: IEEE 802.3 10/100BASE-TX
-
Rate: 10/100Mbit/s/autonegotiation
-
Duplex: half/full duplex
-
SNMP for rack mount model
-
Connector: RJ45
E1 interface
-
Rate: 2.048Mbps±50ppm
-
Standard: ITU-T G.703/G.704
-
Code: HDB3
-
Connector: RJ45 for 120Ω（balancedï¼?lead pin #1 for TX+ and #2 for TX-, lead pin #3 for RX+ and #6 for RX-. BNC for 75Ω（unbalancedï¼?
-
Working environment
|
Power supply
|
220VAC/110VAC OR -48VDC
|
|
Consumption
|
<5W
|
|
Working temperature
|
-5℃～50�/p>
|
|
Storage temperature
|
-40℃～+70�/p>
|
|
Relative humidity
|
5％～90�/p>
|
|
Others
|
should be free from any causticity, dissoluble gas, dust and electrical interference
|
-
Dimension and weight
|
Dimension
|
225mm×115mm×36mm
|
|
Weight
|
1Kg(RO)
|
