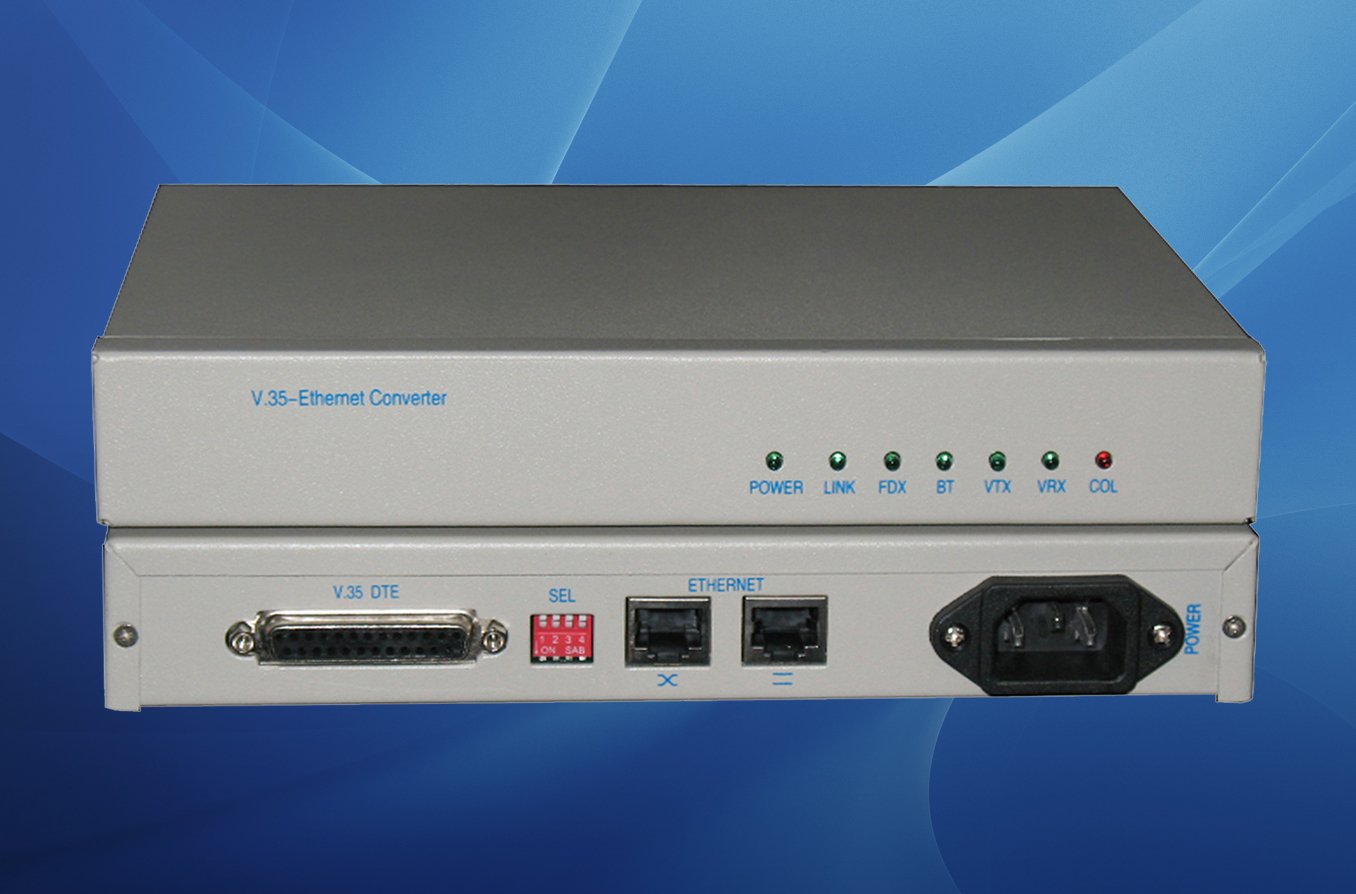

Ethernet over serial V.35 interface converter

Product Description
V.35/Ethernet converter is the device which can realize the convert between the V.35 interface and Ethernet interface. It is widely used in data communication such as the connection between the Base band modem and LAN. It is used in pairs.


Technology Characteristics
-> DTE V.35 interface, the speed follow the clock of DCE and up to 10Mbps.
-> A V.35 interface transceiver phase-free transfer feature, in most cases do not have to adjust phase control switch (SEL:3-4)


Interface Specifications

Ethernet Interface:
   -> Fully IEEE 802.3 (2000) compliant
   -> Cross and parallel reticle automatic recognition
   -> 10Mbpsï¼?00Mbps, full duplex and half duplex adaptive


V.35 Interface:
   -> Interface Mode : DTE
   -> Interface Type : DB25
   -> Rate : 0-10Mbps


Typical application



General characteristics
-> Power : 220V±20% , -36 ~ -72V
-> Power Consumption : < 5W
-> Environment Temperature : 0â„?50â„?br /> -> Size : 220×175×35mm
-> Net Weight: 750g


Packing List
-> V.35/Ethernet Protocol Converter
-> One Power cord (Note: -48v no with power cord)
-> One conversion cable of DB25-M34
-> Manual book
