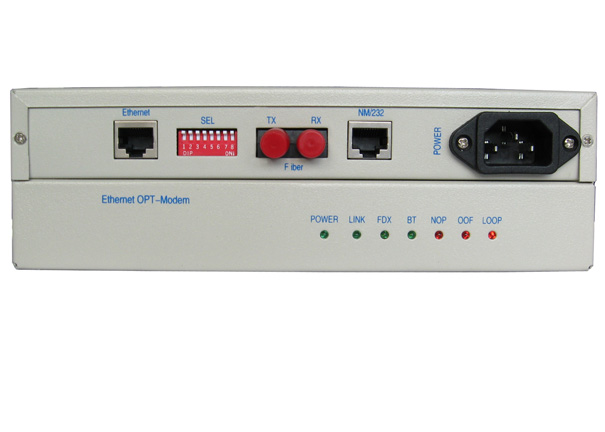

Ethernet fiber optic modem

Ethernet fiber optical modem is the device which can realize the N*64Kbps (N=1…32) E1 and one line RS232 over fiber, widely used in PC interconnecting and fiber transmitting (FTTH).

1. Features of Ethernet fiber optic modem

Ethernet fiber optical modem can be connected with E1 optical modem, V.35 optical modem and FE1/10BaseT protocol converter.
Realize E1 signal transmitting over fiber in transparent and multi-frame mode, and wideband is 64Kbps~2048Kbps
Any frame number can be set up at random during transmit in multi-frame mode
Support Ethernet auto-sensed and full/half duplex function
Support MDI/MDI-X auto-sensed
Enable to manage and supervise working in Internet system as well as the situation of the device settings

2.  Optical interface of Ethernet fiber optic modem

Transmit Mode: Single/ Multi-mode
Module: Single/Double Fiber
Interface: FC/SC/ST
Wavelength: 1310nm/1550nm
Distance: 2Km/40Km/60Km/120Km
3. General characteristics of Ethernet fiber optic modem

Power : 220V±20% , -36 ~ -72V
Power Consumption : < 5W
Environment Temperature : 0â„?50â„?br /> Size : 220×165×35mm
Net Weight: 900g
4.Packing List of Ethernet fiber optic modem

Ethernet Optical Modem
One Power cord (Note: -48v no with power cord)
Manual book
