IDM-C200F/800F EoPDH 4 or 8E1/ETHE- RNET (FIBER) converter realizes Ethernet transparent transmission over 1~8E1 with maximum transmit rate of 15.84Mb/s. 4 Ethernet ports are available including one fiber port with 100Mbps. This device adopts with international standard protocol (G.7041、G.7042、G.7043、G.8040) at all layers and able to intercommunicate with third party products followed same standard. The device not only provides perfect alarm/status indication for E1 and Ethernet interface, but also with senior management function such as Ethernet data traffic statistics etc. The device is with high integration, low power consumption, stable performance and easy to use.
Features
-> The Ethernet data will not be damnified if enlarge or reduce the transmission bandwidth.
-> The E1 spur track on both ends can be connected not according to the serial number. When a single slip direction E1 fails, the other direction can still work.
-> E1 automatic test loop back and cut off function. The E1 channel will be cut off once find E1 signal loop back. Auto-restore the use of E1 after release. Avoid the network storm without interrupting operations.
-> Perfect alarm indication. Display local or terminal optional.
-> Support local E1 channel side loop back function, facilitate to test E1 channels.
Transmission interface:
-> Realize Ethernet data transmission over 1~8E1
-> Support auto delete the fault E1 channels (BER more than 1E-6 or a serious warning LOS/AIS/LOF or the signal loop back); Auto-restore the use of E1 after eliminate the failure.
-> For 8 E1 channels, the maximum tolerable time delay difference between any two can be up to 220ms. It will have an alarm for exceed the limit when the time delay difference over 220ms, meanwhile, business interrupt jitter tolerance, jitter transfer characteristics in the line with ITU-T G.823.
Ethernet interface:
-> Provide 4 maximum shared Ethernet interface, support VLAN division based on interface, in the line with IEEE 802.1Q standard
-> Provide 1024 pieces MAC address table, the local data stream will not send to the terminal.
-> Support frame length: minimum: 64 bytes, maximum: 1916 bytes.
-> Provide flux statistics for each Ethernet interface, such as the fault package number and total package number etc.
-> Provide PAUSE flux control function, can be equipped with network management.
Optical interface:
-> Transmit Mode : Single/ Multi-mode
-> Module : Single/Double Fiber
-> Interface : FC/SC/ST
-> Wavelength : 1310nm/1550nm
-> Distance : 2Km/40Km/60Km/120Km
(Standard : Single-mode/Double Fiber/1310nm/40Km)
Management interface:
-> Support trunk super terminal management or network management based on SNMP. (optional)
In line with ITU-T standard:
-> GFP-F encapsulation suggestion G.7041
-> VCAT and LCAS suggestion G.7042
-> Ethernet to nxE1 map suggestion G.7043
-> Ethernet to E1 map suggestion G.8040
General characteristics
-> Power : 220V±20% , -36 ~ -72V
-> Power Consumption : Less than 10W
-> Environment Temperature : -5℃～50?br />
-> Storage temperature : -40℃～70?br />
-> Relative humidity : ≤95％，non-condensing
-> Device dimension : 483mm×44mm×175mm
-> Net Weight : 2.2Kg
Packing List

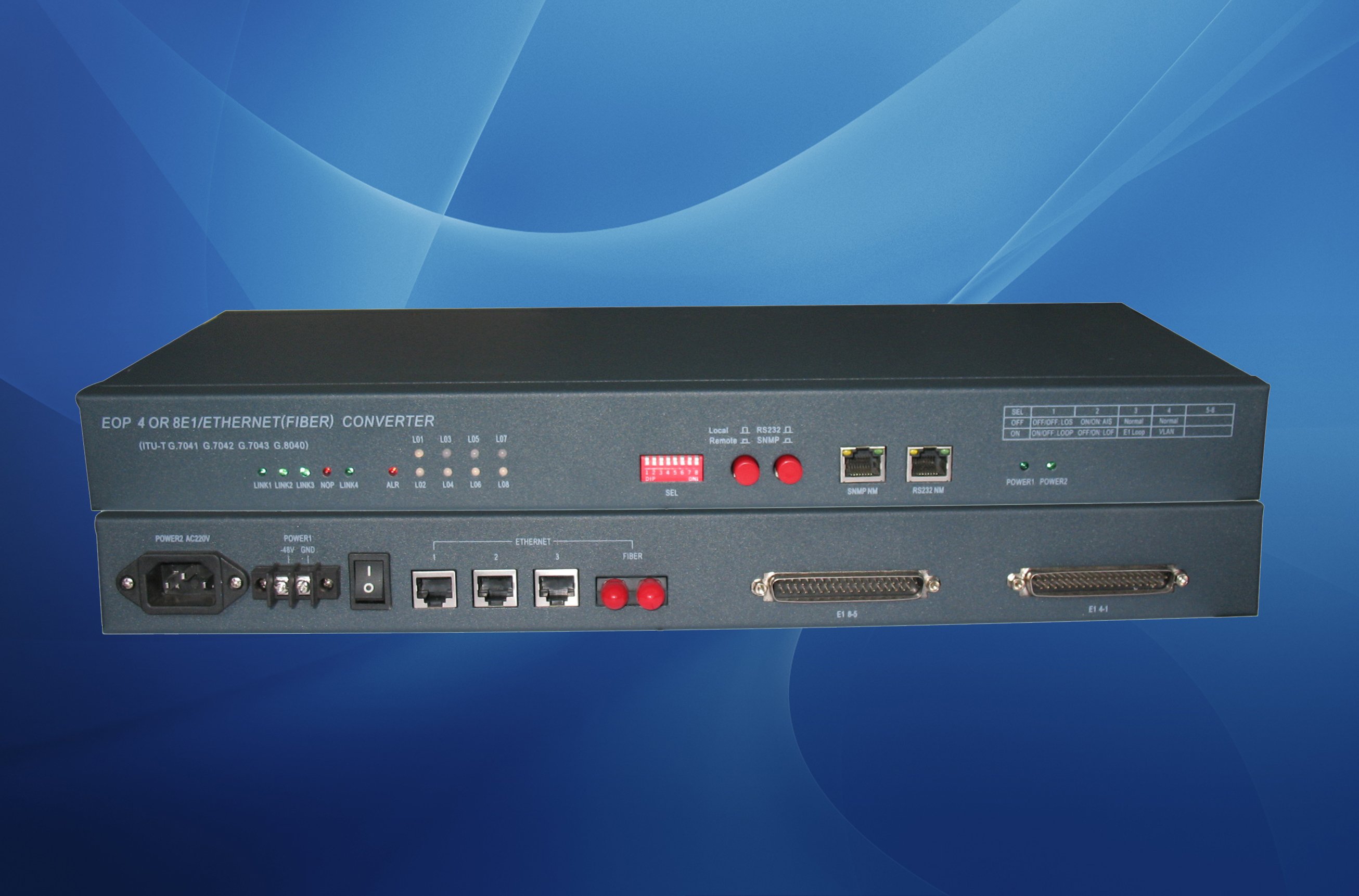

1. 1pc EoPDH 4 OR 8E1/ETHERNET (FIBER) CONVERTER
2. One power cord for 220V (no power cord for -48V)
3. 2pcs DB37/8XBNC adapter for 75Ω(2pcs DB37/4XRJ45 adapter for 120Ω device)
4. 16pcs BNC coaxial connectors(not for 120Ω device)
5. 4 RJ45 connectors
6. User Manual
