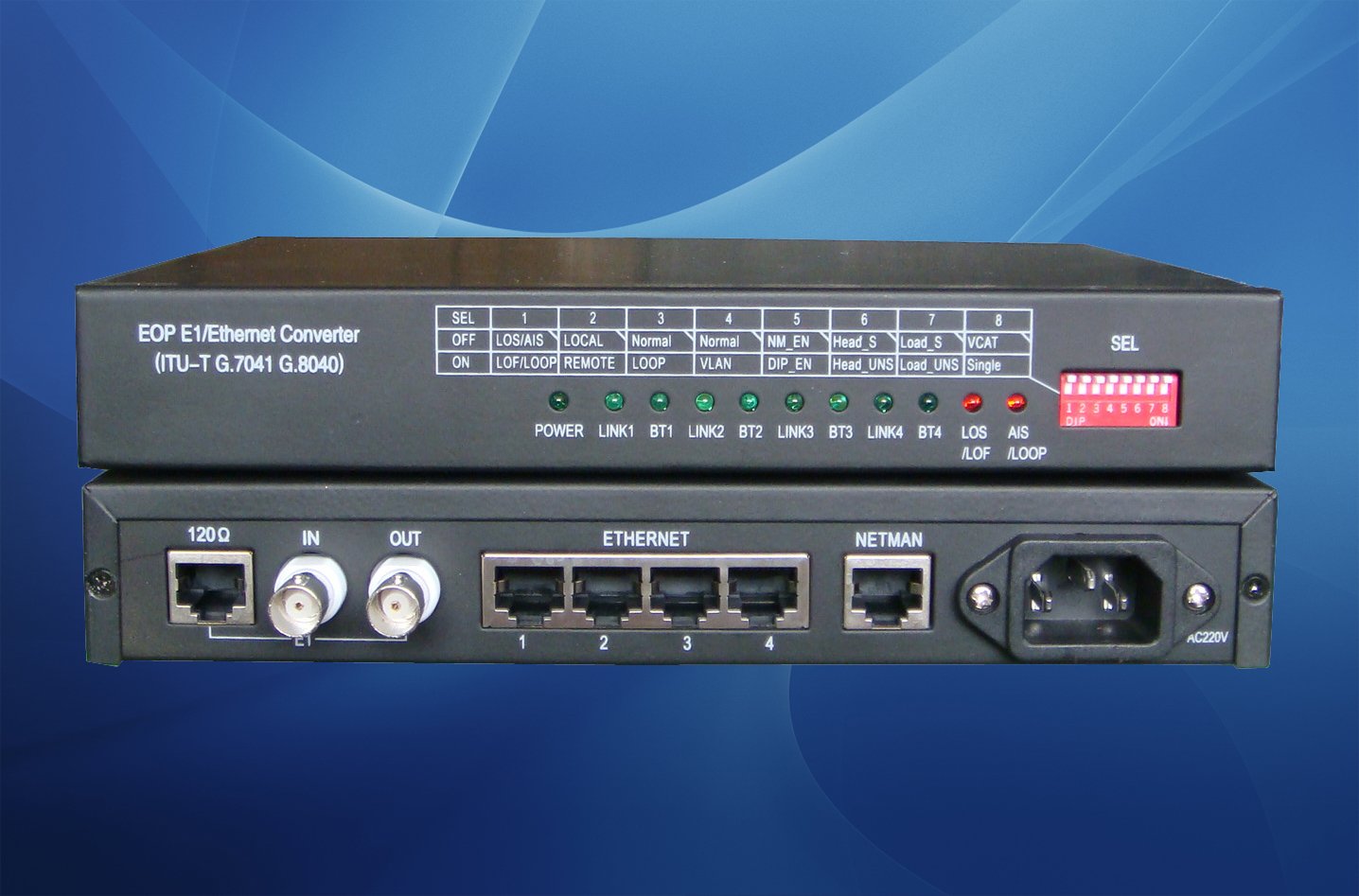

IDM-C108B4 EoPDH E1/Ethernet converter, known as “Net bridge”, adopts telecom line (E1 or E1 transmitting network such as PDH, SDH, microwave, etc) to extend Ethernet.
EoPDH E1/Ethernet converter complies with international standard at each layer (G.7041, G.7042, G.7043, G.8040).The EoPDH E1/Ethernet converter is able to intercommunicate with devices from other factories following the same standard protocols. The device not only offers perfect alarm/status indicator for E1 and Ethernet, but with advance management function such as Ethernet data stream statistics etc. This EoPDH E1/Ethernet converter is with high integration, low consumption, stable capability and easy employ.
Technology Characteristics
-> Comply with ITU-T standard protocol
GFP-F encapsulation scheme: G.7041
Virtual concatenation (VCAT) and link capacity adjustment scheme (LCAS): ITU-T G.7042
Ethernet mapping to nxE1 scheme G.7043
Ethernet mapping to E1 scheme: G.8040
-> Support 4 10M, 100M and full/half duplex Ethernet interface, support parallel and across Ethernet cable, support intercommunicate between 4 Ethernet and VLAN division, support VLAN transparent transmission under intercommunication status.
-> Support E1 circuit loop back test function
-> Support network management function, able to supervise the working and device status.
-> Support local data filter function
Interface Specifications
E1 Interface:
-> HDB3 code
-> Coding rate: 2048Kbps±50ppm
-> 75Ω physical interface user BNC coaxial connector, 120Ω physical interface use RJ45 connector
Ethernet Interface:
-> Rate: 10Mbps or 100Mbps
-> Interface type：RJ45
General characteristics
-> Dimension: 220*175*35 mm
-> Net weightï¼?000g
-> Powerï¼?20V±20%ï¼?36 ~ -72V
-> Power consumption: <5W
-> Environment temperature: 0â„?50â„?/p>
Packing List
-> One EOPDH E1/Ethernet converter
-> One power cord (Note: -48v no with power cord)
-> Two BNC coaxial connectors
-> Manual book
