8xE1 G.703+4xEthernet+1 to 18 channel voice (FXS/FXO) fiber multiplexer

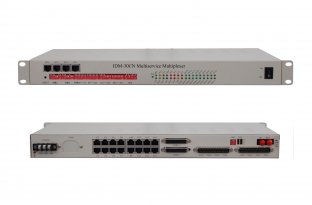

: Large Image :8xE1 G.703+4xEthernet+1 to 18 channel voice (FXS/FXO) fiber multiplexer

Product Details:

Place of Origin:	Beijing,China
Brand Name:	IDM
Model Number:	IDM-30CN

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Packaging Details:	2pcs packed in one carton box
Delivery Time:	3-5 days after payment
Payment Terms:	TT in advance
Supply Ability:	3000pcs per month

Detailed Product Description

Description

IDM-30CN transmits up to 18 channels of voice/telephone or data signals over a pair of fibers or one single fiber. It could accommodate more than ten types of plug-in cards including FXO, FXS, 4-wire E&M, 2-wire E&M, V.24, etc. All plug-inreplaceable cards could be inserted into or removed from the slots on the main board at will and 8 E1 channels are able to provide users with extra 240 channels for 64Kbps data signal transmission, all of which makes IDM-30CN not only very flexible but also supremely expandable.

Features

Transmission medium is fiber .
Provides users with 18 voice channels, 8E1 channels and 4Ethernet channels.
Standard 19” 1U housing, easy to install.
Modular configuration and 8 E1 channels make it flexible and expandable.
The amount of voice channels is variable within 18.
DIP switch and LED alarm indication available.
Four 10/100Mbps shared Ethernet ports supporting VLAN.

Specification

Optical interface

Physical connector	FC/ SC	Mode	Single mode/Multi-mode
Rate	155bps±50ppm	Wavelength	1310nm/1550nm
Optical output power	-2�?11dBm	Sensitivity	Better than -36dBm

E1 interface

Physical connector	DB37	Code	HDB3
Compliance	ITU-T G.703	Impedance	75Ω
Framing	PCM30/31	Transmission	Transparent transmission

Ethernet interface

Physical connector	RJ45	Rate	10/100M Base-T
Compliance	IEEE802.3	Duplex	Full duplex/half duplex/Auto-negotiation

FXO/FXS interface

Physical connector	RJ45&DB25	Frequency range	300Hz~3400Hz
Impedance	200Ω+560Ω//0.1μF	Compliance	ITU G.711 A-Law
Loopcurrent	‎25mA

Power and consumption

Power supply

DC-48V /AC 220V/Dual

Consumption

≤100W

Working environment

Temperature

0ºC�?0ºC

Humidity

≤90%(non-condensing)

Physical parameter

Dimension	44.2cm22.8cm4.5cm	Net weight	3KG
Dimension of package	55.5cm31cm26.5cm	Package Weight	8.5KG(2pcs in a package)

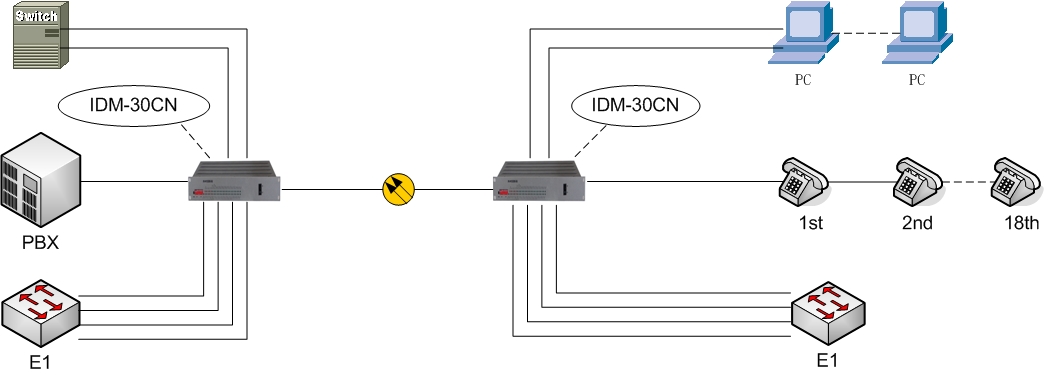

Application
