8E1/8Eth/8Phone/2RS232 optic multiplexer

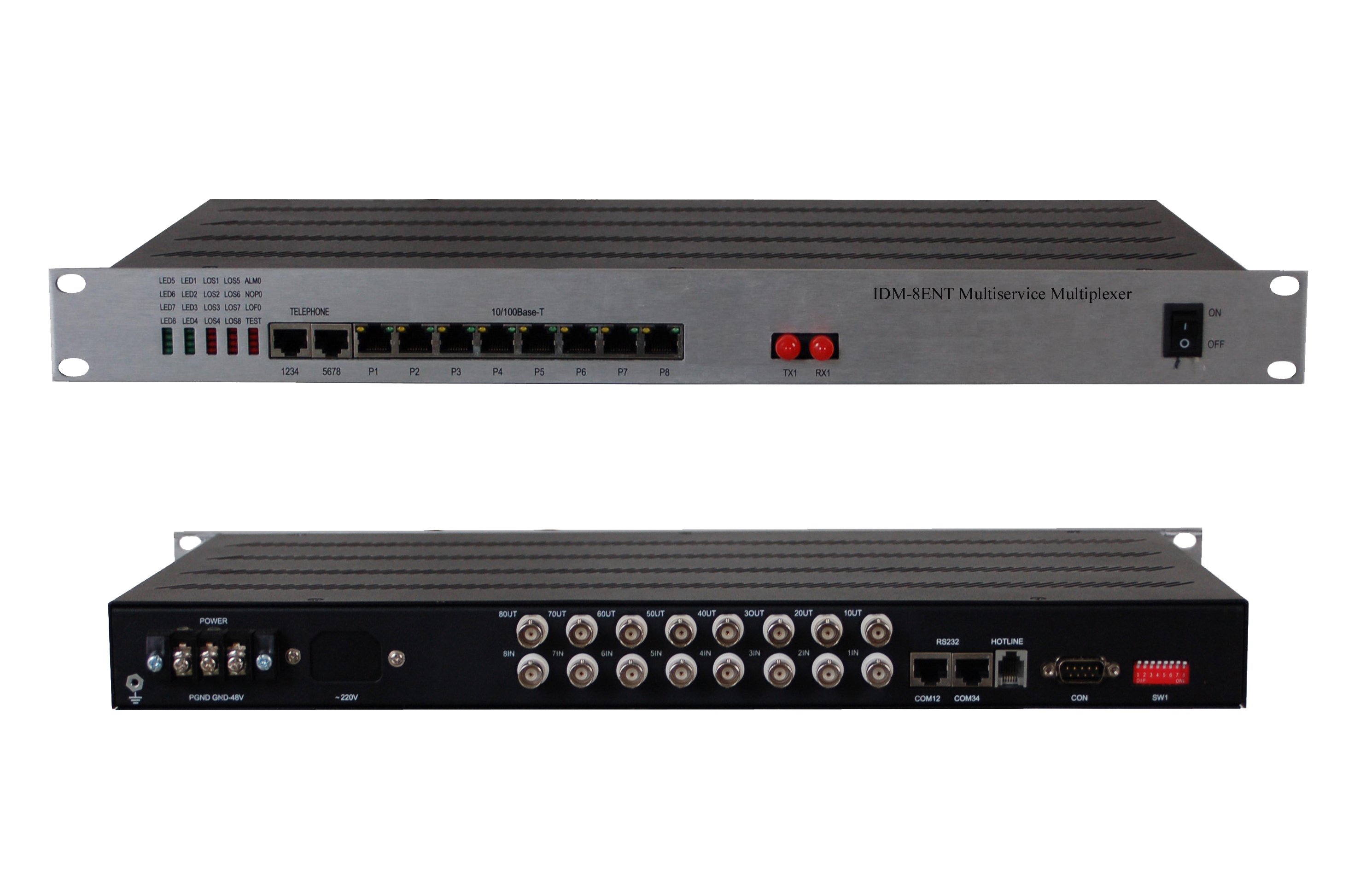

: Large Image :8*E1/8*Eth/8*Phone/2*RS232 optic multiplexer

Product Details:

Place of Origin:	Beijing,China
Brand Name:	IDM
Model Number:	IDM-8ENT

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Packaging Details:	2pcs packed in one carton box
Delivery Time:	3-5 days after payment
Payment Terms:	TT in advance
Supply Ability:	3000pcs per month

Detailed Product Description

Description

IDM-8ENT is a fixed configuration. It transmits 8 channels of E1, 8 channels of Ethernet and 8 channels of phone over a pair of fibers (or one single fiber).

Features

Transmission medium is fiber.
8 Ethernet channels, 8 E1 transparent transmission channels, 8 telephone channels and 2 RS232 (V.24) channels.
Standard 19” 1U housing, easy to install.
Fixed configuration, not modular, cost-effective.
DIP switch and LED alarm indication.
DC-48V or AC220V for power supply. Dual power supply available too.

Specification

Optical Interface

Physical connector	FC/ SC	Mode	Single mode/Multi-mode
Rate	155bps±50ppm	Wavelength	1310nm
Consumption	-2�?11dBm	Sensitivity	Better than -36dBm
