6xE1 G.703+2xEthernet+300 channel voice (FXS/FXO) fiber multiplexer (modular)

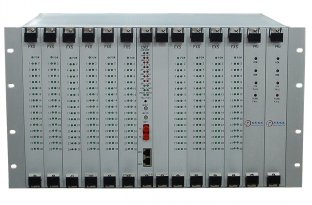

: Large Image :6xE1 G.703+2xEthernet+300 channel voice (FXS/FXO) fiber multiplexer (modular)

Product Details:

Place of Origin:	Beijing,China
Brand Name:	IDM
Model Number:	IDM-300ME

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Packaging Details:	1pcs packed in one carton box
Delivery Time:	3-5 days after payment
Payment Terms:	TT in advance
Supply Ability:	3000pcs per month

Detailed Product Description

Overview

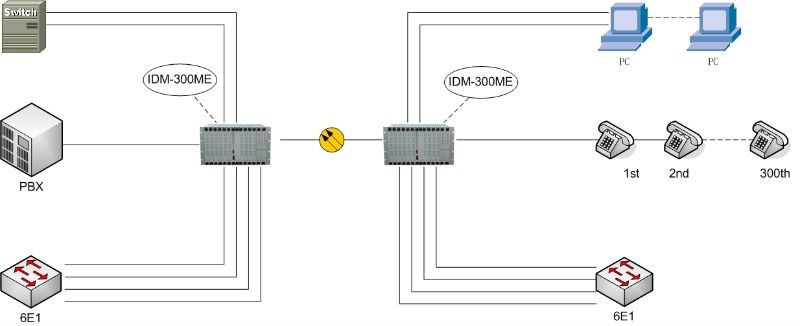

IDM-300ME provides 2 shared 10/100Mpbs FE interfaces, 6 transparently transmitted E1 interfaces and at most 300 FXO/FXS interfaces with “caller ID display” feature.

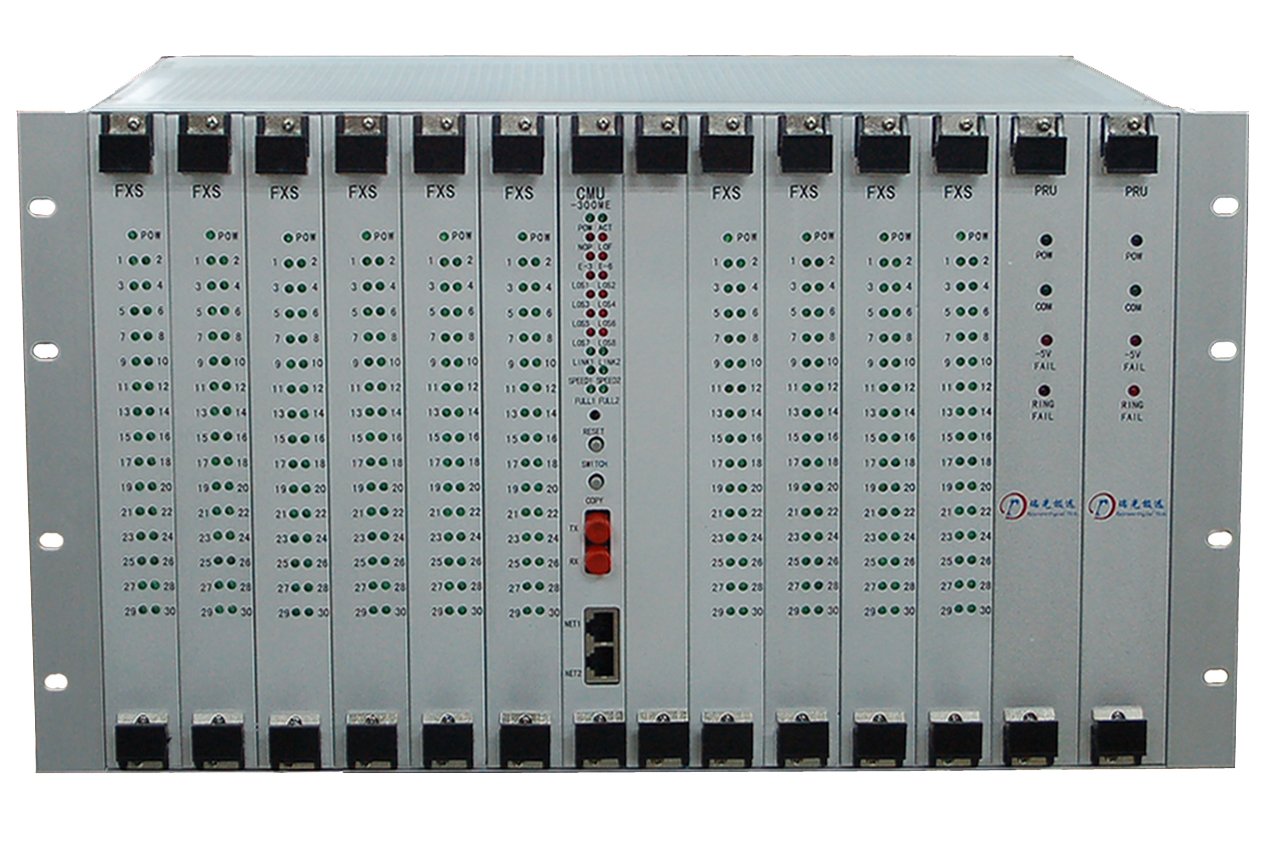

IDM-300ME also provides 13 slots, which would be able to accommodate 1 MCU (main control unit), 10 user’s units and 2 power units. All of these units are hot-swappable.

Features

1. Transmission medium is fiber and the optical line rate is 155Mbps.

2. 1 MCU unit and 10 user’s unit, each of which provides 30 channels of 64kbps voice.

3. The capacity of IDM-300ME is 300 channels.

4. Two 10/100Mbps shared FE interfaces with VLAN feature.

5. 6 transparently transmitted E1 interfaces, 4 of which is 75ohm and the other 2 are 120ohm.

6. Rack-mountable 6U frame, easy to install and maintain.

7. 6*E1 transparent transmissions make it very expandable.

8. Dual power supplies to make up a 1+1 redundancy.

Specification

Optical interface

Physical connector	FC/ SC	Mode	Single mode/Multi-mode
Rate	155bps±50ppm	Wavelength	850nm/1310nm/1550nm
Optical output power	-2~-11dBm	Sensitivity	Better than -36dBm
