63E1 MSTP/SDH Multiplexer

Overview

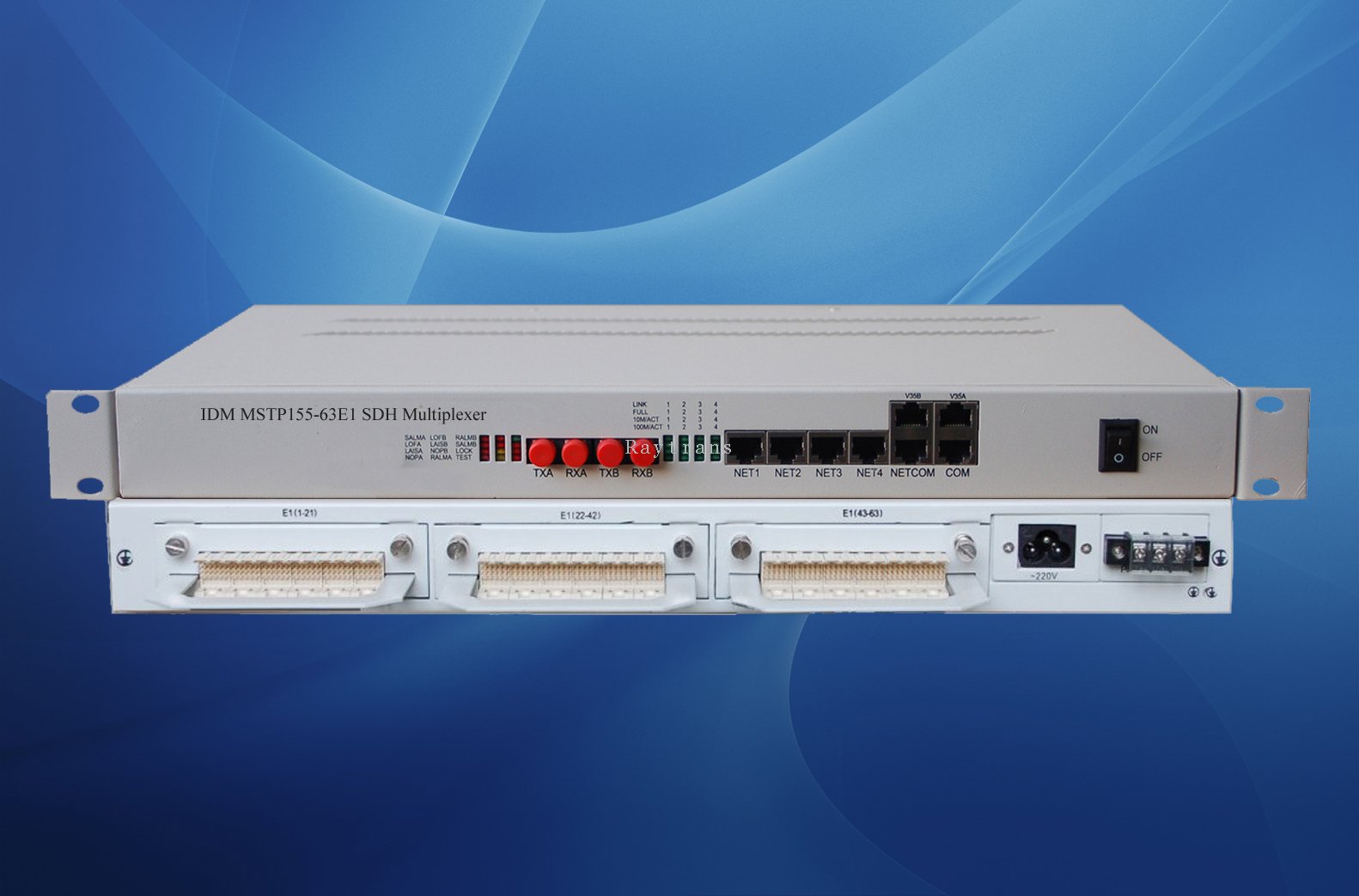

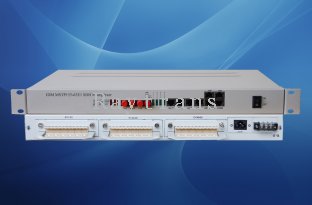

IDM MSTP155-63E1 is a SDH Multiplexer, which has two STM-1(155.52Mb/s) optical ports, 63 E1 interfaces, 4 physically separated FE ports with a bandwidth of N*2.048Mbpsand two V.35/V.11 ports. IDM MSTP155-63E1 can be used not only as a­n add-drop multiplexer (ADM), but also as a termination multiplexer(TM).The simple but practical network management software (NMS) is able to work for equipment configuration, fault diagnosis, data collection and real-time monitoring of network performance.

Features

1. Two STM-1 optical interface, provide optical 1 +1 redundancy.
2. Provide up to 63 E1 interfaces.
3. 2 N*64K (N = 0 ~ 31) V.35/V.11 channel.
4. E1, Ethernet, V.35 and voice service optional.
5. Provide 4 physically isolated FE ports, to achieve N × 2.048Mbps bandwidth.
6. Support point-to-point, chain and ring network applications.
7. Comply with the ITU-T G.813 standards and fully meet the timing accuracy.
8. Powerful network management features, online real-time monitoring.
9. Standard 19-inch 1U housing, easy to install.

Specifications

Optical interface

1. Rate: 155Mbps±4.6ppm
2. Fiber mode: Single/multi-mode
3. Consumption: -15 ~ -8dBm
4. Wavelength: 1310nm/1550nm
5. Physical connector: FC/SC
6. Sensitivity: Better than -32dBm

 E1 interface

• Rate: 2048Kbps
• Code: HDB3
• Compliance with: ITU-T G.703 standard
• Impedance: 75Ω/120Ω
• Frame structure: PCM30/31
• Signaling: In-band
• Channels: Up to 63

 Ethernet interface

• Rate: N ×2.048MbpsN≤50
• Duplex: Full/Half auto-negotiation
• Physical connector: RJ-45
• Compliance with: IEEE802.3

 FXO/FXS interface

• Impedance: 200Ω + 560Ω//0.1μF
• Audio frequency range: 300Hz ~ 3400Hz
• Compression ratio: A law ITU G.711
• Loopcurrent: 25mA

 EM2/4 interface

• Audio frequency range: 300Hz ~ 3400Hz
• Compression ratio: Class A in ITU G.711
• Echo loss: >18dB
• Impedance: 600Ω balanced

 V.24 interface

• Rate: asynchronous <=9600bps and asynchronous 64kbps
• Comply with: CCITT V.28

 V.35 interface

• Rate: N × 64KbpsN=0 ~ 31
• Comply with: ISO2593
• Physical connector: RJ-45
• Comply with: ITU-T V.35
• Power Supply: 220VAC/- 48VDC
• Consumption: ≤50W

 Operating environment

• Temperature: -30℃~ 50â„?/li>
• Humidity: 0 ~ 95% (non-condesing)

 Dimensions

• Width × depth × height (mm): 440mm× 230mm × 45mm
