4xE1 G.703+2xEthernet+1 to 30 channel voice (FXS/FXO) fiber multiplexer

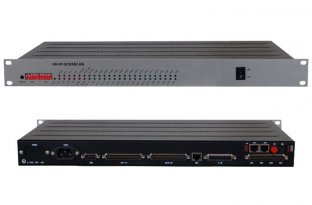

: Large Image :4xE1 G.703+2xEthernet+1 to 30 channel voice (FXS/FXO) fiber multiplexer

Product Details:

Place of Origin:	Beijing,China
Brand Name:	IDM
Model Number:	IDM-30N

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Packaging Details:	2pcs packed in one carton box
Delivery Time:	3-5 days after payment
Payment Terms:	TT in advance
Supply Ability:	3000pcs per month

Detailed Product Description

Description

IDM-30N is a fixed configuration. It transmits 30 channels of phone over a pair of fibers (or one single fiber).

Features

Transmission medium is fiber.
Standard 19” 1U housing, easy to install.
Fixed configuration, not modular, cost-effective.
Provide 30 voice channels ONLY.
DIP switch and LED alarm indication.
2 100M shared Ethernet ports supporting VLAN.
4 E1 transparent transmission channels.

Specification

Optical Interface

Physical connector	FC/ SC	Mode	Single mode/Multi-mode
Rate	155bps±50ppm	Wavelength	1310nm
Consumption	-2�?11dBm	Sensitivity	Better than -36dBm

E1 Interface

Rate	2048Kbps	Code	HDB3
Compliant with	ITU-T G.703	Impedance	75Ω/120Ω
Framing	PCM30/31	Transmission	Transparent transmission

Ethernet

Physical connector	RJ-45	Rate	10/100M Base-T
Compliant with	IEEE802.3	Duplex	Full duplex/half duplex/Auto-negotiation

FXO/FXS interface

Frequency range	300Hz~3400Hz	Impedance	200Ω+560Ω//0.1μF
Compliant with	ITU G.711 A-Law‎	loop current	25mA

Power and consumption

Power supply

DC-48V /AC 220V/Dual

Consumption

≤100W

Working environment

Temperature

0ºC�?0ºC

Humidity

≤90%(non-condensing)

Application

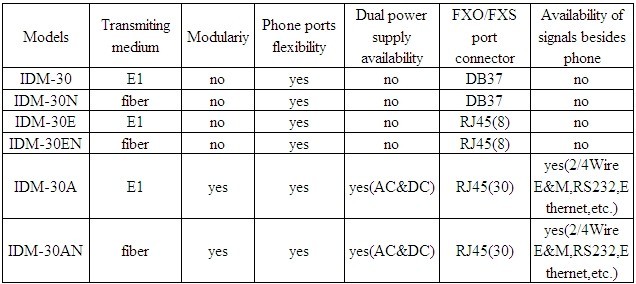

Comparison of PCM30 Models/Order information

Product Tag : multiplexer, telephone multiplexer, fiber opitc multiplexer
