Detailed Product Description
Brief Introduction

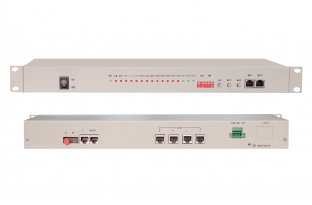

IDM-120NET can multiplex 4×E1+2×10/100BaseT in one fiber channel. The BNC model provides unbalanced 75 Ohm coaxial connectors while the RJ-45 model provides balanced 120 Ohm connectors over twisted pair wiring. IDM-120NET is standalone and rack mountable. Dual AC&DC power supplies are available. IDM-120NET is supposed to be applied in point-to-point applications. The optical interface supports simple ALS function. The code of E1 interface is HDB3 which meets all the international standards. It also has perfect monitoring and alarm function, low power consumption and stable performance.
Features
-
IU 19” housing, standalone and rack-mountable.
-
Provide 4 E1 channels transmission transparently, and 2 10/100M Ethernet data channel.
-
Ethernet ports features VLAN, flow control, and self- negotiation, full/half duplex and 10M/100M optional.
-
AC and DC are not only optional, but also could coexist.
-
155Mbps optical interface and transmission distance up to 120km.
-
Support 4×E1 remote loop and fiber local loop.
-
NMS interface optional (RS232/Ethernet).
Specifications
Power Supply
220VAC/-48VDC
Consumption: 40W±10%
Optical interface
|
Rate
|
155Mbps±50ppm
|
Wavelength
|
1310nm/1550nm
|
|
Physical connector
|
FC/SC
|
Optical receiver Sensitivity
|
ï¼?36
|
E1 interface
|
Channel capacity
|
4
|
Bit rate
|
2.048Mbps±50ppm
|
|
Compliance with
|
ITU-T G.703
|
Line code
|
HDB3
|
|
Impedance
|
75 unbalanced and 120 balanced
|
Ethernet interface
|
Rate
|
100Mbps, 10M/100M auto-negotiation
|
|
Comply with
|
IEEE802.3, 10/100Base-TX
|
|
Duplex
|
Full/Half auto-negotiation
|
Working Environment
Operating temperature: 0ºC~50ºC
Humidity: 5% to 90% (25°C non-condensing)
Dimensions
440mm×230mm×45mm (Width × Depth × Height)

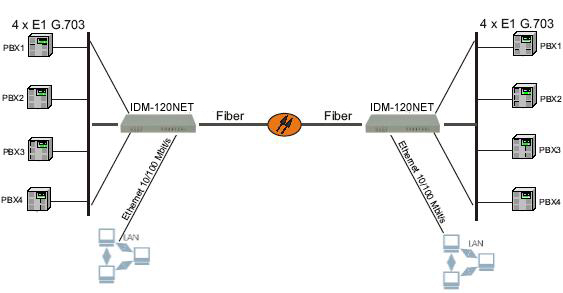

Typical application
