Detailed Product Description
Overview

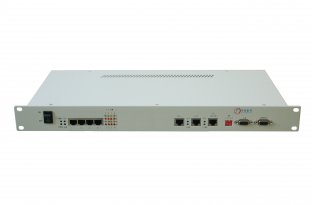

IDM-TOP800 E1/T1 over IP converter can transmit 1~16 E1 channels over the IP networks. The device supports framed and unframed E1 channel, and support all of the traditional E1 and IP services, such as voice, data, fax, signaling and the other all kinds of communication service. IDM-TOP800 E1/T1 over IP converter is widely used with WLAN to transmit E1 signals.
Features
-
Transmitting framed and unframed E1 signal through IP network
-
E1 Number: 1 to 16 channels optional
-
FE Number: 3. (1 of them is electrical, the rest 2 could either be electrical or optical)
-
Low throughput delay
-
Clock Selectable: internal clock, external clock, network adaptable clock or recovered from E1 line
-
Can be configured for N X 64K, or network adaptable to N X 64K
-
QoS guarantee for E1 transmitted on the IP network
-
Easy to configure and use.
-
Transmitted package based on the IP address, through switches, routers network equipment etc
-
General UTP Ethernet interface, 10M/100M auto-negotiation
Specifications
Power:
Power consumption:≤4W
AC power: 160-240v
DC power: -48V
Ethernet
Physical port: RJ-45/FC/SC
Port rate: 10/100Mbps
Full/half duplex
Compatible with IEEE802.3
E1
Physical port: RJ45
Input rate range: 2.048Mbps±50ppm
Port code: HDB3
Impedance: 120ohm balanced
Compatible with: G.703
Environment
Operating Temperature: 0~50ºC
Operating Relative Humidity: 0~95%
Store Temperature: -20~65ºC
Store Relative Humidity: 10~95% Size 482mm(W)×430mm(H)×152mm(D)
Application
Ordering information
IDM-TOP801 1E1 over IP/Ethernet
IDM-TOP802 2E1 over IP/Ethernet
IDM-TOP804 4E1 over IP/Ethernet
IDM-TOP808 8E1 over IP/Ethernet
IDM-TOP816 16E1 over IP/Ethernet
