2xEthernet+2 channel voice (FXS/FXO) fiber multiplexer

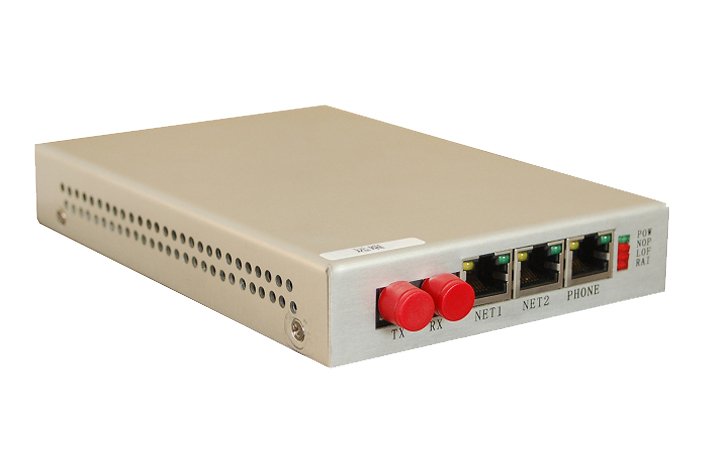

Large Image :2xEthernet+2 channel voice (FXS/FXO) fiber multiplexer

Product Details:

Place of Origin:Beijing,China
Brand Name:IDM
Model Number:IDM-NT202

Payment & Shipping Terms:

Minimum Order Quantity:2 pcs
Packaging Details:2pcs packed in one carton box
Delivery Time:3-5 days after payment
Payment Terms:TT in advance
Supply Ability:3000pcs per month
Detailed Product Description

Description

IDM-NT202 is a fixed configuration. It transmits 2 channels of FXO/FXS signal and 2 channels of 10/100M Ethernet signal over a pair of fibers (or one single fiber).

Features

  1. Transmission medium is fiber.
  2. Fixed configuration, not modular, cost-effective.
  3. Mini housing, small and compact, not standard 19”1U nor rack mountable.
  4. 2 channels for telephone with “caller ID display”feature.
  5. 2 shared 100M Ethernet channels and VLAN available.
  6. Perfect alarm indication function.

Specification



Physical connector

FC/SC

Adaptive Fiber

Single/Dual Mode

Rate

155bps±50ppm

Wavelength

1310nm/1550nm

Consumption

-2ï½?11dBm

Sensitivity

Better than -36dBm

Optical interface

Ethernet Interface



Physical connector

RJ-45

Rate

10/100Base-T

Comply with

IEEE802.3

Duplex

Full/Half duplex/auto-negotiation

FXO/FXS Interface



Audio frequency range

300Hz~3400Hz

Impedance

200Ω+560Ω//0.1μF

Compliance

ITU G.711 A-Law

Loopcurrent

25mA

Power supply and Consumption



Power supply

-DC48V or AC 220V

Consumption

≤350W





Operating environment



Temperature

0oC~+50oC

Humidity

95%( non-condensing)

Physical parameter



Dimension

17*11*3cm

Net weight

3KG

Package dimension

35*32.7*6.2cm

Package Weight

1.6KG(2pcs in a package)

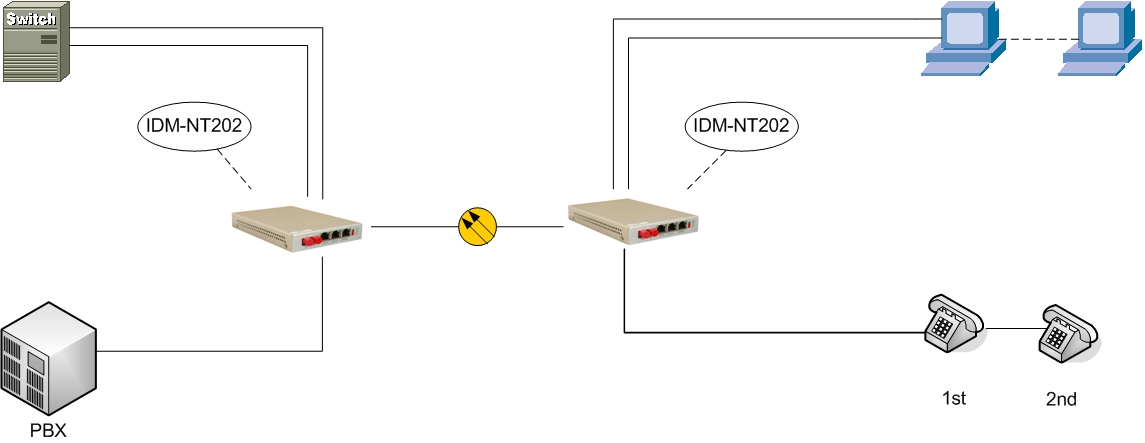

 Application

Product Tag : POTS fiber multiplexer, telephone multiplexer, fiber multiplexer
