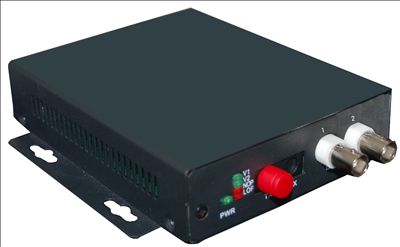

2-channel optic video multiplexer is a miniaturized fiber transmission equipment of video, data and other service signals. It introduces advanced all-digital uncompressed technique and was tailor-made for surveillance & control market. It is able to transfer 2-channel unidirectional video, 2-channel data, 2-channel bidirectional audio. The hot swappable design makes the installation very easy and on-site adjustment unnecessary. All interfaces based on standard core circuits and optical modules are compliant with all international criteria.
1. Feature of 2-channel optic video multiplexer
SNMP network management function which can realize real time monitoring.
Video quality of broadcast-level.
Audio quality of CD-level.
Compatibility of video formats like PAL, NTSC, SECAM etc.
SMT(Surface Mount Technology) Lighting and surge multiple protection
Lossless video regeneration and repetition truckingļ¼free from electro-magnetic or radio frequency interference.
Transparent data coding and is compatible with the products of major camera manufacturers.
Advanced self-adaptive technique, no on-site electrical or optical adjustments are necessary.
Miniaturized and compact structure, very easy to install.
2. Specification of 2-channel optic video multiplexer
2.1 Optical interface
|
Physical connector
|
FC/SC
|
|
Single or Multi mode
|
|
Receiver’s rate
|
155bps/84Mbps
|
Receiver’s wavelength
|
1310nm/1550nm
|
|
Transmitter’s rate
|
84Mbps/155Gbps
|
Transmitter’s wavelength
|
1550nm/1310nm
|
|
Consumption
|
-15~-8dBm
|
Receiver’s sensitivity
|
Better than -32dBm
|
|
Transmitting range
|
20km or further(with optical module)
|
2.2 Video interface
|
Physical connector
|
BNC
|
Luma Nonlinearity
|
<3%
|
|
Video sampling bit width
|
8bit
|
Video bandwidth
|
0Hz~6.5MHz
|
|
differential phase (DP)
|
<0.7 o
|
differential gain (DG)
|
<0.7%
|
|
Loaded overvoltage
|
1.5VP-P (Typical value)
|
Input/output voltage
|
1VP-P(Typical value)
|
|
Input/output impedance
|
75Ω(Unbalance)
|
Video frequency SNR
|
≥70dB(weighted)
|
2.3 High-fidelity interface
|
Physical connector
|
RJ45
|
Audio sampling bit width
|
16bit
|
|
Input/output impedance
|
ADC:100KΩ/DAC:10KΩ
|
Input/output voltage
|
1.5VP-P (typical value)
|
|
Audio sampling frequency
|
32KHz
|
Audio frequency SNR
|
≥90dB
|
|
Audio bandwidth
|
20Hz~20KHz
|
THD
|
<1%
|
2.4 Data interface
|
Physical connector
|
RJ-45
|
|
Data types
|
RS-232ćRS422(4-wire system)ćRS485(2-wire system)
|
2.5Power supply and consumption
|
Power supply
|
AC220V/DC- 48V
|
Consumption
|
≤6W
|
2.6 Operating environment
|
Temperature
|
-15ā~+65ā?/span>
|
Storage temperature
|
-25ā~+75ā?/span>
|
|
Technical grade
|
-40ā~ +85ā?/span>
|
Relative humidity
|
0~95%ļ¼non-coagulationļ¼?/span>
|
2.7 Dimension
