Detailed Product Description

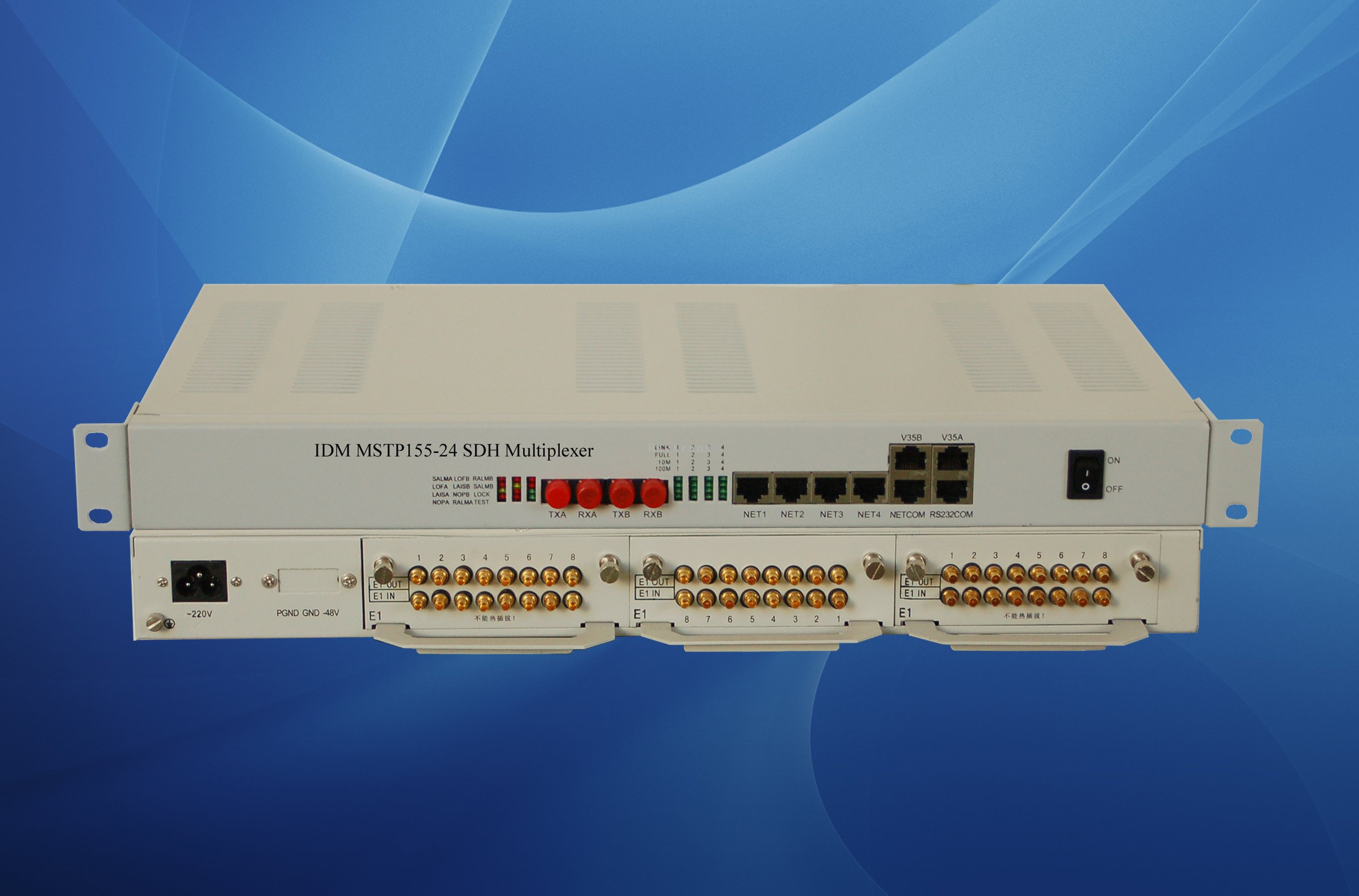

IDM MSTP155-24 is a newly-developed optical fiber transmission equipment by RDT company based on SDH technology. It manages to satisfy not only users’ needs for broadband, narrowband and other fiber optical transmission/access services, but also users’ needs for larger capacity and more reliable communication protection. It also provides succinct and faultless network management function which would carry out equipment configurating, fault-finding, data collecting and real-time monitoring on network performance. This item also features all of its components of industrial grade, comprehensive EMC and interface protection design.
1. Features of 24E1 SDH Multiplexer
Standard 19-inch 1U chassis structure, easy to install.
Two STM-1 optical interfaces with 1+1 channel protection.(Either one fails, the other will back it up)
Two V.35/V.11 [N × 64K (N = 0 ~ 31)] channels.
Integration of SDH, PCM, PDH and Ethernet.
Provide up to 4 Ethernet networks with physical isolation.
Provide 3 slots which can be inserted with 3 service disks, 8E1 interface optional, 8E1+100M PDH, network bridge interface, 8 telephone interfaces and 8 RS232/RS485/RS422 interfaces.
Support networking mode: point to point, chain type, tree type, star type, ring type etc
In compliance with the ITU-T G.813 standards.
Faultless network management feature, online real-time monitoring.
2. Specifications of 24E1 SDH Multiplexer
2.1 Optical interface
|
Rate
|
155Mbps±4.6ppm
|
|
Single/multi-mode
|
|
Consumption
|
-15 ~ -8dBm
|
Wavelength
|
1310nm/1550nm
|
|
Physical connector
|
FC/SC
|
Sensitivity
|
Better than -32dBm
|
|
Transmitting range
|
40km or further(with optical module)
|
2.2 E1 interface
|
Rate
|
2048Kbps
|
Code
|
HDB3
|
|
Comply with
|
ITU-T G.703 standard
|
Impedance
|
75Ω/120Ω
|
|
Frame structure
|
PCM30/31
|
signaling
|
Inbound Signaling
|
|
Channels
|
Up to 24
|
2.3 Ethernet interface
|
Rate
|
N × 2.048Mbps(N≤50)
|
Duplex
|
Full/Half auto-negotiation
|
|
Physical connector
|
RJ-45
|
Comply with
|
IEEE802.3
|
2.4 FXO/FXS interface
|
Impedance
|
200Ω + 560Ω//0.1μF
|
Audio frequency range
|
300Hz ~ 3400Hz
|
|
Compression ratio
|
Class A in ITU G.711
|
Loop current
|
25mA
|
2.5 EM2/4 interface
|
Audio frequency range
|
300Hz ~ 3400Hz
|
Compression ratio
|
Class A in ITU G.711
|
|
Echo loss
|
>18dB
|
Impedance
|
600Ω balanced
|
2.6 V.24 interface
|
Rate
|
asynchronous <=9600bps
and asynchronous 64kbps
|
Comply with
|
CCITT V.28
|
2.7 V.35 interface
|
Rate
|
N × 64KbpsN=0 ~ 31
|
Comply with
|
ISO2593
|
|
Physical connector
|
RJ-45
|
Comply with
|
ITU-T V.35
|
2.8 Power Supply
220VAC/- 48VDC
Consumption: ≤50W
2.9 Operating environment
|
Temperature
|
-30℃~ 50�/p>
|
Humidity
|
0 ~ 95% (non-coagulation)
|
2.10 Dimensions
Width × Depth × Height (mm): 440 × 230 × 45
