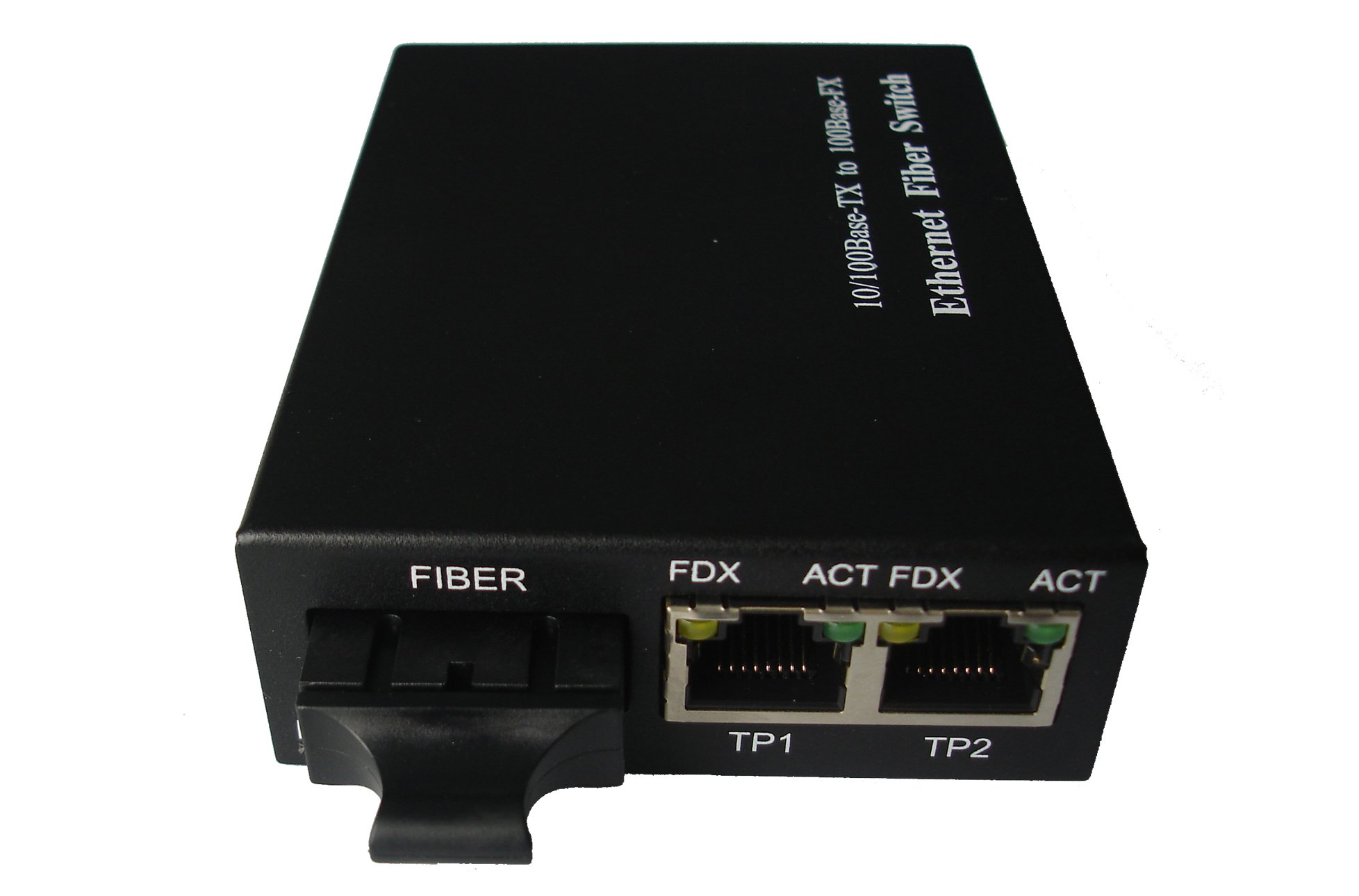

10/100BaseTX To 100Base-FX Media Converter

Description
10/100Mbps Media Converter a quick Ethernet media converter with the function of photo-electricity switchover between 10BASE-TX or 100BASE-TX and 100BASE-FX. It can extend the conventional 10M Ethernet or 100M Quick Ethernet to 120KM via the quick Ethernet Fiber-optical Line. The stable and reliable switch supply enables long-term operation and makes it convenient to replace the power supply. Full-duplex and half-duplex are optional. The configuration of DTE and MPR functions makes it convenient to connect the similar products.

Features

* Inner power or external power optional
* Inner power adopt single slot configuration
* Media converter module could be used with rack mount
* Power supply AC 220V /110Vor DC -48V /+24V
* Auto identify MDI/MDIX
* Full/half duplex optional
* Extend fiber-optic distance up to 120km with single-mode fiber

Specification

* Dimension: 150mm×115mm×33mm
* Input voltage: AC 220V /110Vor DC -48V /+24V
* Power wastage: 4W
* Wastage: 0.85Kg
* Working temperature: -10℃～70�br /> * Storage temperature: -20℃～80�br /> * Humidity: 5%�5%（no-condensing�/p>

Protocol
* IEEE802.3 Ethernet(10Mbps)
* IEEE802.1d Building tree protocol
* IEEE802.3u Quick Ethernet (100Mbps)
* IEEE802.1Q VLAN
* IEEE802.1p QOS PRI
* IEEE802.3x Full duplex flux control
* CISCO ISL & VTP protocol
