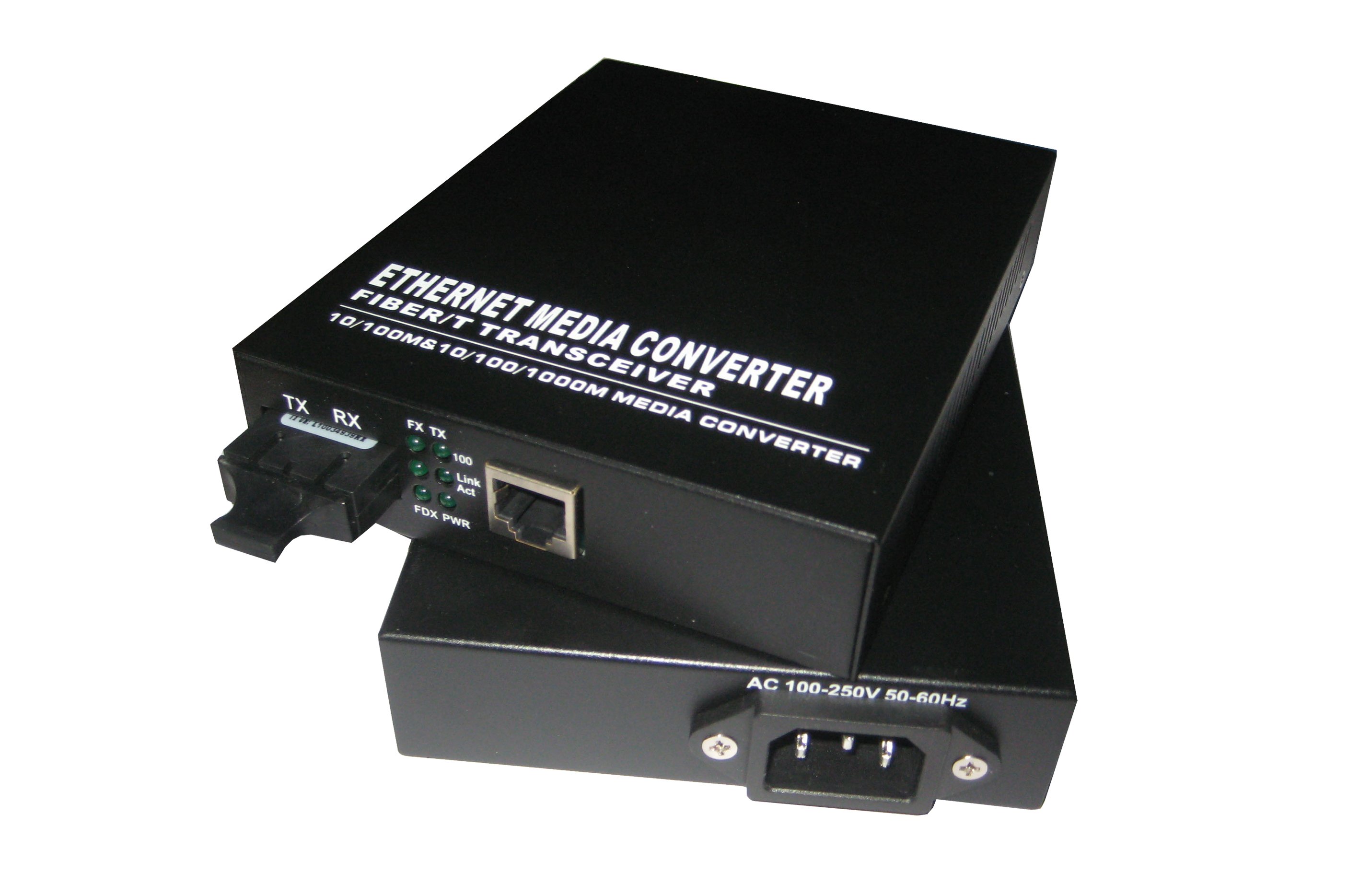

1000Base-T to 1000Base-SX/LX Media Converter

Description
10/100/1000M designed to fit the emerging deployment needs of optical fiber network. This stand-alone converter allows you to connect Gigabit twisted-pair network to optical-fiber network easily and cost effectively to a maximum distance 100km.
10/100/1000M is fully compliant with IEEE 802.3z & 802.3ab standards. The Installation & operation procedures of the -10/100/1000M are simple & straightforward. User can monitor the real time operation status easily via a set of LEDs located in the front panel

Features

·MDI-MDIX Auto-crossover supported
·Plug-and-Play installation
·Support Jumbo frame (64-9216 Byte)
·Support Voltage Monitor
·Support full/half duplex auto-negotiation
·Provides one RJ-45 twisted pair 1000Mbps Ethernet port and one 1000BASE-Fx port
·Comply with IEEE802.3z 1000Base-SX/LX &IEEE 802.3ab 1000Base-T
·LED indication: 1000M, 100M, POW, TPLINK, FXLINK, FDX

Specification

Standard
IEEE 802.3z 1000Base-/LX
IEEE 802.3ab 1000Base-T

Interface
1000Base-T : 1 x RJ45 Interface
1000Base-LX : 1 x SC Interface

LED
1000M, 100M, POW, TPLINK, FXLINK, FDX

Power
External Power, DC 5V, 2A
50, 60 Hzt
Power consumption: 5 W

Typical Operation & Storage Temperature
Operation:0° ~ 70â„?br /> Storage Temperature: -40° ~ 85â„?br /> Humidity:5% ~ 90% non-condensing

Dimension and Weight
Size: 95x70 x 25mm (WxDxH)
Shipping Weight: 0.4kg


Typical Optical Power Budget
